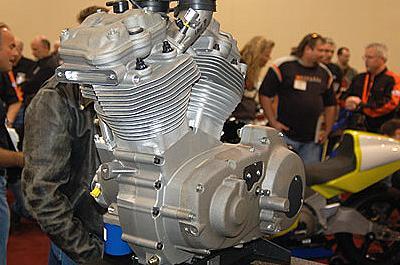

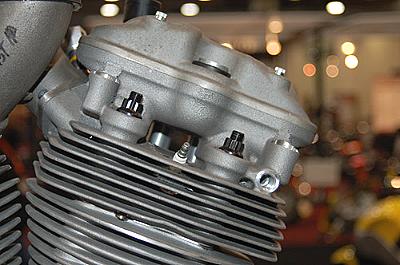

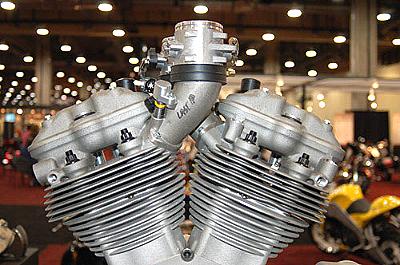

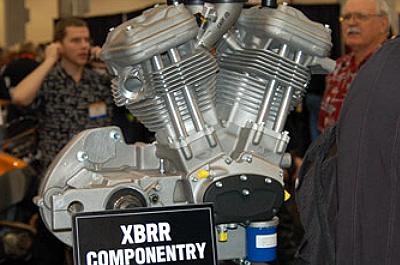

The engine is a amazing step forward. First you notice the XR 750 styled heads and pushrod
|

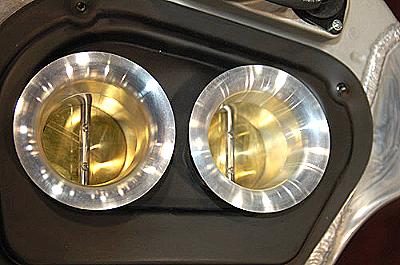

covers. Than the giant 62 mm airhorns of the double throttle bodys.
|
|
|
|
|
The rockerbox- and primary- covers are casted in extra lightweight Magnesium.
|

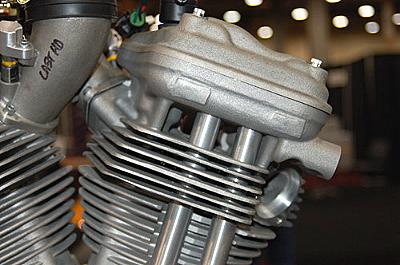

The heads are constructed to accept downdraft feeding with equal lenght and turn.
|
|
|
|
|
The oilpump position and the drive change from radial to axial, requires a new camecover and
|
the ignition is now mounted on the cranksprocket of the primary, what allows propper triggertiming.
|
|
|
|
|

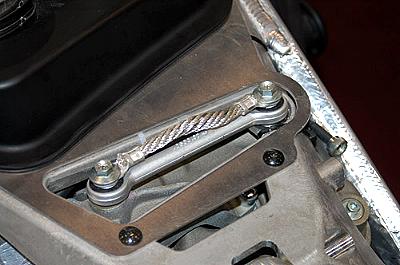

All mountings and the uniplanar construction with tiebars is like on the stock XB models.
|

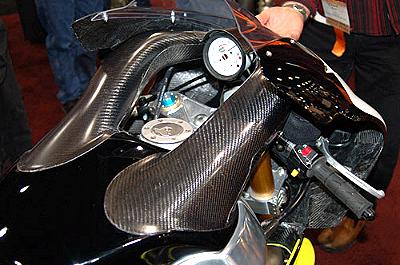

Notice the huge carbon airhoses going from the Naca airinlet to the airbox to feed the 1.350cc V Twin.
|
|
|
|
|
The cylinders with a wider bolt pattern accept maximum bore (103,6mm) what Buell mixed with
|
the short stroke of the stock XB9 (79,4mm). That to run the high engine speed a Sporttwin need.
|
|
|
|
|

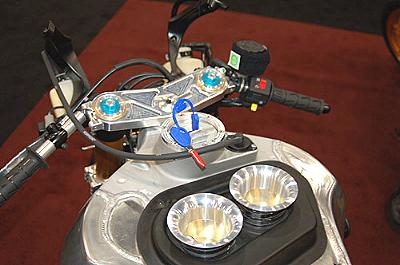

The velocity stacks are mounted in a small airbox connected to the carbon hoses. The injectors are
|

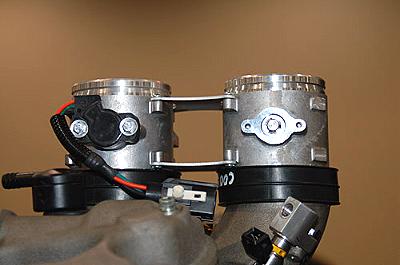

located as near as possible to the intake valves. Position of the butterflies comes by TPS sensors.
|
|
|
|
|

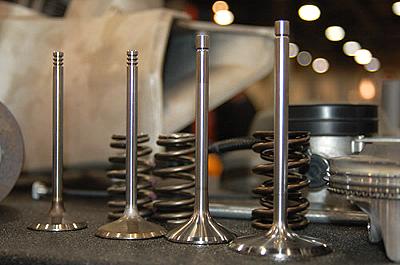

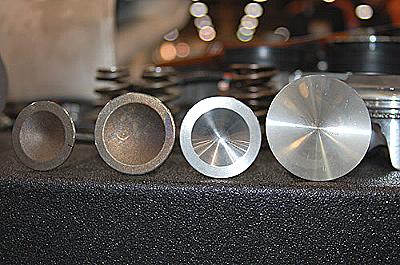

Notice how much bigger the “double R” inlet valve is comparing to the stock XB.
|
They are also longer to accept more lift and they are special flow optimized.
|
|
|
|
|

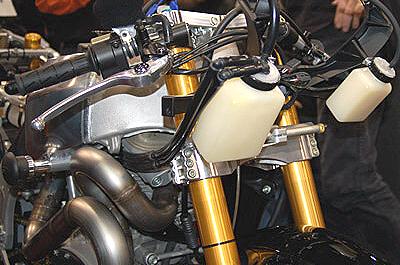

Behind the frontfairing the catchcans for the engine breathers and the fueltank are
|

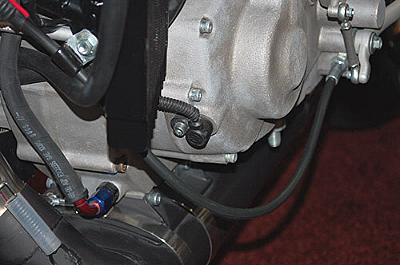

located. On the left a 11 line aluminium oilcooler is mounted to reduce the oiltemperature.
|
|
|
|
|

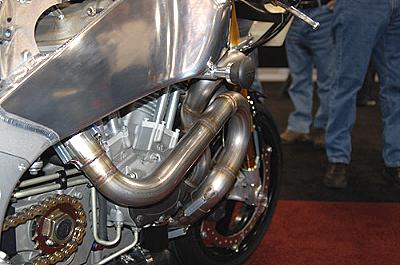

The wave analyzed Header- and Exhaussystem use equal lenght of the header to optimize filling
|
of the cylinders. The header- pieces are mounted my springs to compensate extension.
|
|
|
|
|

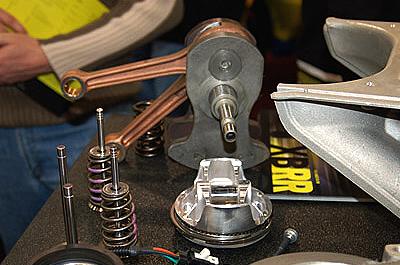

All engine components are lightweight construction to minimize the rotating masses.The
|

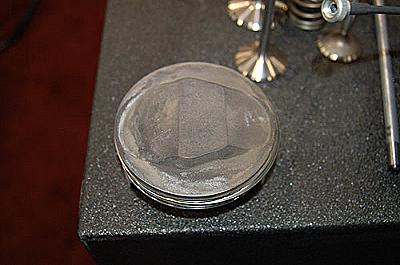

RR Pistons are carrying a asymetric dome fitting in the Hemi bathtub combustion chamber.
|
|
|
|
|

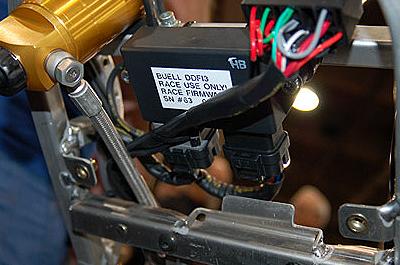

Today engine management components and data collecting are the key of succes. Buell use a small oqo handheld computer
|
to administrate the fuell/ignition system. A great option is to fix the oqo for testrides on the bike to run datarecording of all sensors.
|
